AWS Security & DevOps

Cross-Account Resource Access with AWS IAM Identity Center (SSO)

Secure, auditable cross-account resource access without static keys. Short-lived roles, least privilege, CloudTrail data events, and repeatable Infrastructure as Code.

3rd October 202512 min readAkhil Kakar

Overview

The Challenge

Development teams need secure access to production resources for deployments and operations, but traditional approaches using long-lived access keys create security risks and compliance headaches.

Why Not Static Keys?

  • • Long-lived credentials increase attack surface
  • • Difficult to rotate and manage at scale
  • • Limited audit trail and attribution
  • • Compliance and governance challenges

Cross-Account Roles Benefits

  • • Short-lived credentials (15 minutes to 12 hours)
  • • Fine-grained authorisation controls
  • • Automatic credential rotation
  • • Strong audit trail with CloudTrail

Security Controls Overview

SSO + MFA
Least Privilege
KMS Encryption
CloudTrail Logs

System Architecture

The solution uses AWS IAM Identity Center (SSO) for authentication, cross-account IAM roles for authorisation, and S3 bucket policies for fine-grained access control. Here's how the components work together:

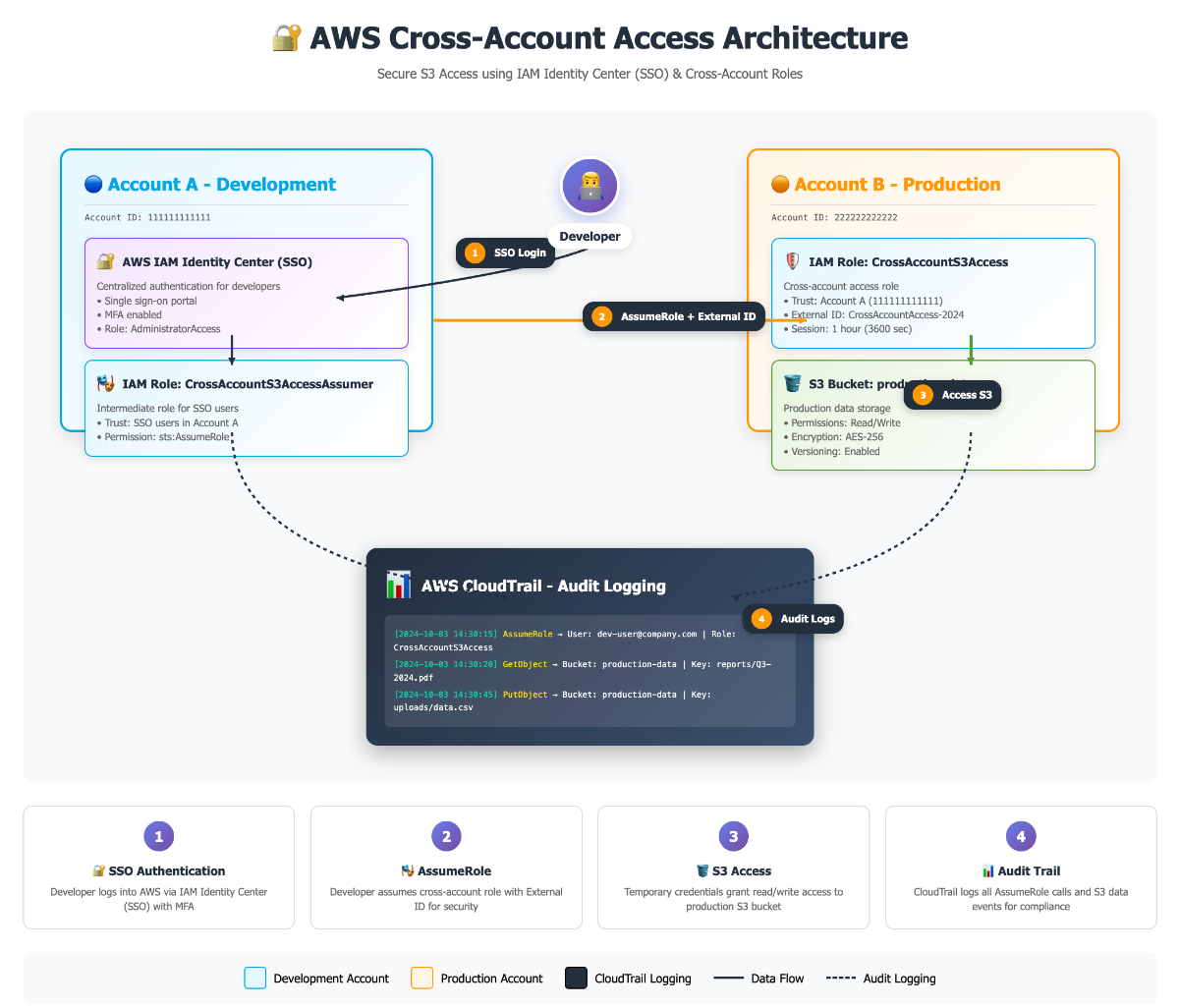

System Context Diagram

AWS Cross-Account Access Architecture diagram showing secure S3 access using IAM Identity Center (SSO) and cross-account roles with comprehensive audit logging
Architecture Flow: Developer authenticates via AWS IAM Identity Center with MFA → assumes cross-account role in Production account with External ID → accesses S3 bucket with fine-grained permissions → CloudTrail captures comprehensive audit trail including role assumptions and S3 data events → Complete security flow with 1-hour session duration and AES-256 encryption

Identity Layer

AWS IAM Identity Center provides centralised authentication with MFA enforcement. SSO profiles configured per account for seamless access.

Authorisation Layer

Cross-account IAM role in Production trusts Development account. STS issues temporary credentials with configurable session duration.

Data Access Layer

S3 bucket policy restricts access to the specific cross-account role. KMS encryption with role-based key policies for additional security.

Key Policy Configurations

The security model relies on two critical policies working together: the S3 bucket policy that restricts access to the cross-account role, and the IAM trust policy that allows the Development account to assume the role.

S3 Bucket Policy

Restricts bucket access to only the cross-account role, ensuring no other principals can access the data even if they have IAM permissions.

{
  "Version": "2012-10-17",
  "Statement": [{
    "Sid": "AllowCrossAccountRoleOnly",
    "Effect": "Allow",
    "Principal": {
      "AWS": "arn:aws:iam::<PROD_ID>:role/DevToProdS3Publisher"
    },
    "Action": [
      "s3:PutObject",
      "s3:ListBucket",
      "s3:GetObject"
    ],
    "Resource": [
      "arn:aws:s3:::<PROD_BUCKET>",
      "arn:aws:s3:::<PROD_BUCKET>/*"
    ]
  }]
}}

IAM Trust Policy

Allows the Development account to assume the Production role. Can be further restricted to specific users or roles within the Development account.

{
  "Version": "2012-10-17",
  "Statement": [{
    "Effect": "Allow",
    "Principal": {
      "AWS": "arn:aws:iam::<DEV_ID>:root"
    },
    "Action": "sts:AssumeRole",
    "Condition": {
      "StringEquals": {
        "aws:RequestedRegion": ["us-east-1", "ap-southeast-2"]
      },
      "Bool": {
        "aws:MultiFactorAuthPresent": "true"
      }
    }
  }]
}}

Security Best Practices

  • • Add MFA requirement in trust policy conditions
  • • Restrict to specific AWS regions using aws:RequestedRegion
  • • Use aws:PrincipalOrgID to limit to your AWS Organisation
  • • Set maximum session duration (1-12 hours)
  • • Include external ID for additional security layer

Quick Start Runbook

Prerequisites:

  • • AWS CLI v2 installed and configured
  • • SSO profiles configured for both accounts
  • • CloudFormation deployment permissions
  • • Git repository cloned locally

Initial Deployment

Clone the repository and run the deployment script located at ./scripts/deploy_script.sh. This script will create the required CloudFormation stacks and test successful upload of files to the S3 bucket.

git clone https://github.com/akhilkakar/aws-cross-account-iam-automation
cd aws-cross-account-iam-automation
./scripts/deploy_script.sh

The script will prompt for SSO profiles and stack prefix. Deploy to Production account first, then Development account. The script automatically tests the cross-account access after deployment.

Cleanup

To remove the CloudFormation stacks when no longer needed:

./scripts/cleanup_script.sh

Ensure you use the same stack prefix that was used during deployment for proper cleanup.

Troubleshooting Guide

SSO Session Expired

Error: "The SSO session associated with this profile has expired"

Solution: Re-authenticate with your SSO provider:

aws sso login --profile <profile-name>
